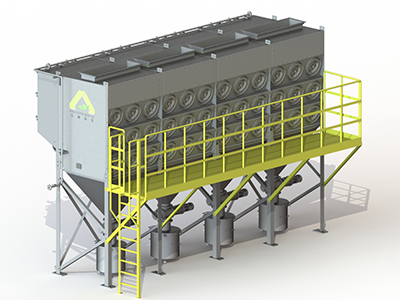

Cartridge Dust Collector - Industrial Pulse Jet Filter System
A cartridge dust collector is an industrial pulse jet filter system that captures dry dust and fine particles through pleated filter cartridges.
It is suitable for compact workshops and production lines where stable filtration, easy cartridge replacement and lower installation footprint are important.
Product Description
Compact industrial cartridge dust collection for fine process dust
cartridge dust collector information, applications and selection notes for industrial emission control projects.
AIER Environmental Cartridge Dust Collector is designed for efficient dust control in industrial processes, suitable for welding, grinding, cutting, spraying, shot blasting, material handling, and packaging operations. The system combines high-efficiency cartridge filtration with stable performance to ensure compliant emissions and long-term reliable operation. It is also known as a pulse jet dust collector or cartridge filter dust collector, and modular units can be combined into complete cartridge dust collection systems.
Featuring large filtration area filter cartridges and a pulse-jet cleaning system, this industrial cartridge dust collector maintains low pressure drop and high collection efficiency even under high airflow and continuous operating conditions. Its compact structure and small footprint make it ideal for modern factories with limited space.
Based on dust characteristics such as particle size, concentration, humidity, and combustibility, AIER Environmental provides customized configurations including explosion protection, antistatic design, and high-temperature resistance to ensure safe and compliant operation.
- Send dust source, airflow, dust loading and temperature before equipment selection.
- Review dust properties carefully when the dust is sticky, oily, wet or high-temperature.
- Confirm installation space, hopper discharge and maintenance access before final sizing.
Treatment direction Industrial dust collection
Core process Pulse jet filtration
Review data Dust source, airflow, dust loading and temperature
How It Works
How the cartridge dust collector works
Dusty air enters the collector, heavier particles settle or are directed toward the hopper, and fine particles are captured on cartridge media. Pulse jet cleaning releases dust from the cartridges and helps keep differential pressure under control.
Pollution source review Equipment configuration Emission target check
Key Features
Product features and configuration advantages
These points describe the product-level configuration direction. Final design should still be reviewed against site data.
Building block structure,modular composition of the required processing air volume
Large air volume filter cartridge, greatly reducing the dust collector volume and footprint
The equipment operation resistance is low, effectively save the energy consumption of dust removal system
Maintenance and replacement of the filter cartridge is simple, fast, safe, shorten the downtime
Technical Data / Specification
Reference data for cartridge dust collector selection
Actual parameters are configured according to airflow, concentration, temperature, installation space and target emission requirement.
| Model | Filtration Area Polyester (m²) | Filtration Area Paper (m²) | Filter wind speed (m/min) | Air flow (m³/h) | Unit quantity | Filter Cartridge quantity |
|---|---|---|---|---|---|---|
| AR-CH2-8 | 75 | 168 | 0.5-1.2 | 2250-6750 | 1 | 8 |
| AR-CH3-12 | 112 | 252 | 0.5-1.2 | 3360-8064 | 1 | 12 |
| AR-CH4-16 | 150 | 336 | 0.5-1.2 | 4500-10800 | 1 | 16 |
| AR-CH3-18 | 170 | 378 | 0.5-1.2 | 5600-12000 | 1 | 18 |
| AR-CH3-24 | 225 | 504 | 0.5-1.2 | 6750-16200 | 2 | 24 |
| AR-CH4-32 | 300 | 672 | 0.5-1.2 | 9000-21600 | 2 | 32 |
| AR-CH2-24 | 225 | 504 | 0.5-1.2 | 6450-16200 | 3 | 24 |
| AR-CH3-36 | 338 | 756 | 0.5-1.2 | 10140-24336 | 3 | 36 |
| AR-CH4-48 | 451 | 1008 | 0.5-1.2 | 13530-32472 | 3 | 48 |
| AR-CH3-48 | 451 | 1008 | 0.5-1.2 | 13530-32472 | 3 | 48 |
| AR-CH4-64 | 601 | 1344 | 0.5-1.2 | 18030-43272 | 4 | 64 |
| AR-CH3-60 | 564 | 1260 | 0.5-1.2 | 16920-40608 | 5 | 60 |
| AR-CH4-80 | 752 | 1680 | 0.5-1.2 | 22560-54144 | 5 | 80 |
| AR-CH3-72 | 676 | 1512 | 0.5-1.2 | 20280-48672 | 6 | 72 |
| AR-CH4-96 | 902 | 2016 | 0.5-1.2 | 27060-64944 | 6 | 96 |
| AR-CH4-112 | 1052 | 2352 | 0.5-1.2 | 31560-75744 | 7 | 112 |
| AR-CH4-128 | 1203 | 2688 | 0.5-1.2 | 36090-86616 | 8 | 128 |
Applications
Where this equipment is typically used
The exact model should be selected after AIER reviews pollutant properties, airflow and operating conditions.
Application
Industrial powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Metalworking dust
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Pharmaceutical powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Workshop dust extraction
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
General manufacturing dust control
Review airflow, pollutant properties and site conditions before final equipment selection.
How to Choose
Selection notes before requesting a quote
- Send dust source, airflow, dust loading and temperature before equipment selection.
- Review dust properties carefully when the dust is sticky, oily, wet or high-temperature.
- Confirm installation space, hopper discharge and maintenance access before final sizing.

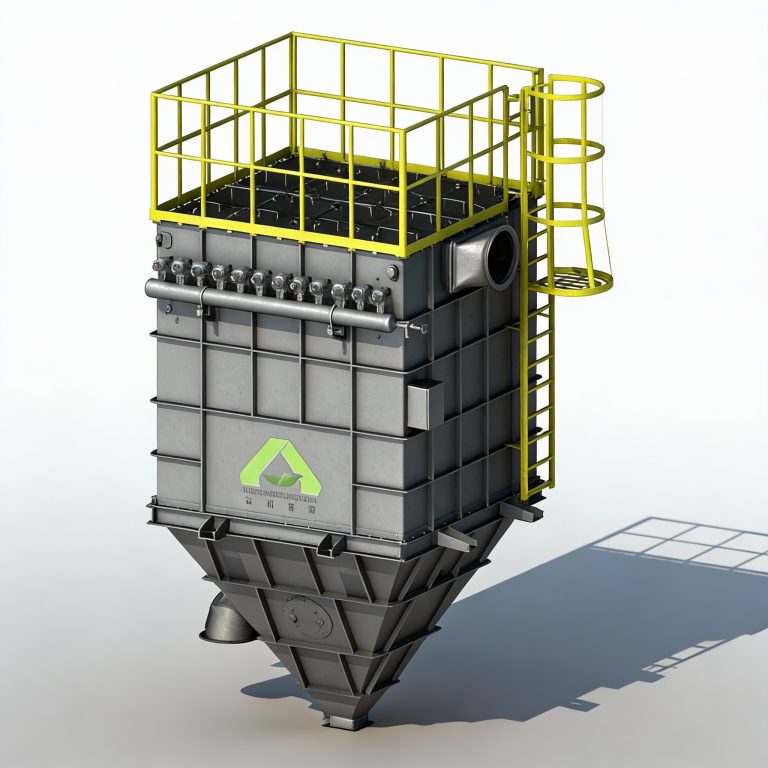

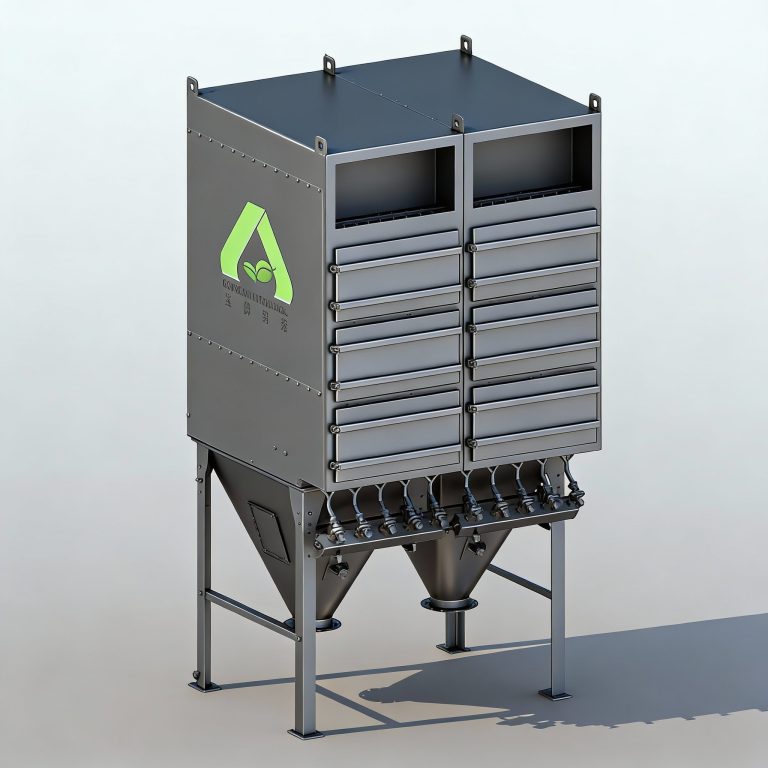

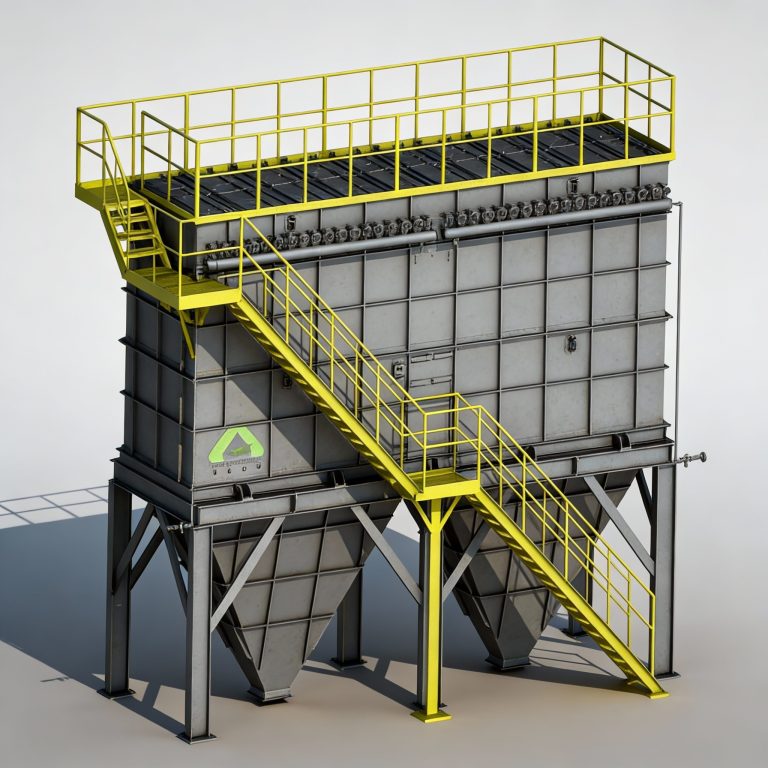

Related Products
View CategoryCompare related AIER equipment
Product Inquiry
What Information Should You Send for a Quote?
For a more accurate recommendation, please include your process, pollutant type, airflow, concentration, temperature, target emission requirement and destination country in the message.
Send Us a Message
FAQ
Frequently Asked Questions
Short answers for product-level selection. For exact model sizing, send your operating data to AIER.
What dust can a cartridge dust collector handle?
A cartridge dust collector handles dry dust and fine particles from welding, grinding, cutting, shot blasting, powder handling and packaging processes. Sticky, oily, wet or high-temperature dust should be reviewed carefully before selection.
What is the difference between polyester and paper filter cartridges?
The same model provides different filtration areas with polyester or paper cartridges, for example 75 m² with polyester and 168 m² with paper on the smallest unit. AIER selects the cartridge media according to dust properties and operating conditions.
How do I choose between cartridge, baghouse and sintered plate collectors?
Cartridge collectors suit compact layouts and many fine dust sources, baghouse collectors suit larger dust loads, and sintered plate collectors are often considered for fine or difficult dust.
What information is needed for a cartridge dust collector quote?
Please provide the dust source, dust type, airflow, dust concentration, temperature, humidity, workshop layout, emission target and installation country. AIER will review the model, filtration area and filter cartridge quantity based on your data.
