Industrial Dust Collection
Pleated Bag Dust Collector - High-Efficiency Industrial Filter
A pleated bag dust collector is an industrial filter system that uses pleated filter bags to increase filtration area within a controlled footprint.
It is suitable when the plant needs baghouse-style dust collection with more effective filter area or lower pressure drop direction.
Product Description
Pleated bag filtration for higher filter area in limited space
pleated bag dust collector information, applications and selection notes for industrial emission control projects.

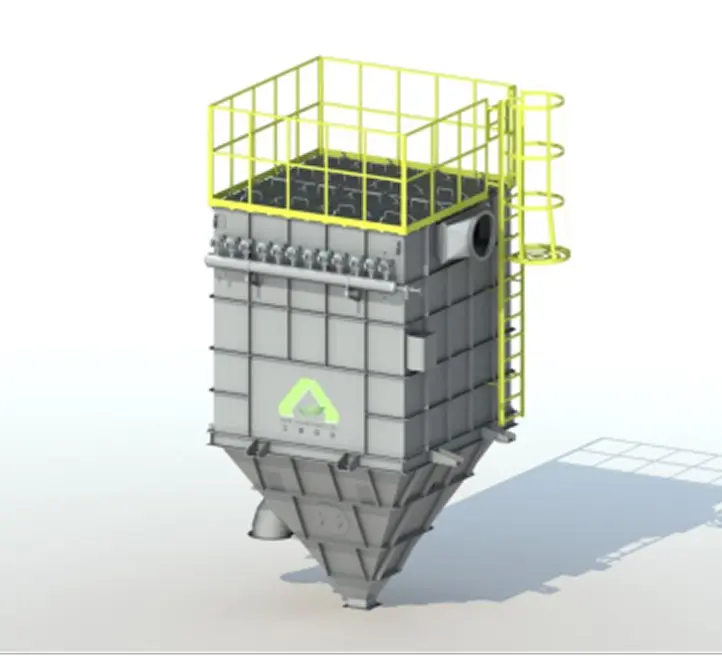

AIER Environmental Pleated Bag Dust Collector is an upgraded solution based on conventional baghouse technology, designed for industrial applications requiring higher filtration area, compact structure, and lower operating pressure drop. It is also called a pleated bag filter and uses pleated filter bags as the core filter element.
The pleated filter bag features a folded structure that significantly increases filtration area per bag, allowing either reduced filter quantity or a more compact housing size. Combined with a pulse-jet cleaning system, the dust collector achieves high collection efficiency, lower pressure drop, and extended filter bag service life.
This system is especially suitable for space-limited installations, retrofit projects, and medium-to-high dust concentration applications, delivering stable compliant emissions while reducing energy consumption and maintenance costs.
Based on dust characteristics and operating conditions, AIER Environmental offers customized configurations including antistatic, explosion-proof, high-temperature resistant, and corrosion-resistant designs to ensure safe, reliable, and compliant long-term operation.
- Send dust source, airflow, dust loading and temperature before equipment selection.
- Review dust properties carefully when the dust is sticky, oily, wet or high-temperature.
- Confirm installation space, hopper discharge and maintenance access before final sizing.
Treatment direction Industrial dust collection
Core process Pulse jet filtration
Review data Dust source, airflow, dust loading and temperature
How It Works
How pleated bag filtration supports dust control
Dust is captured on pleated filter media while pulse cleaning removes accumulated dust from the filter surface. The pleated structure helps increase available filtration area compared with a simple space-limited layout.
Pollution source review Equipment configuration Emission target check
Key Features
Product features and configuration advantages
These points describe the product-level configuration direction. Final design should still be reviewed against site data.
Compared with the traditional bag filter, the use of pleated bag can reduce the volume of equipment, greatly reduce the footprint, and solve the problem of limited installation space of the dust collector.
Unique design can substantially reduce the quantity of filter bags, significantly reduces the equipment running and maintenance costs.
Technical Data / Specification
Reference data for pleated bag dust collector selection
Actual parameters are configured according to airflow, concentration, temperature, installation space and target emission requirement.
| Model | Filtration Area (m²) | Air Flow (m³/h) | Pulse Valve Size | Pulse Valve Qty | Filter Wind Speed (m/min) |
|---|---|---|---|---|---|
| AR-XBH-60 | 60 | 3600-5400 | 1.5" | 6 | 1.0-1.5m/min |
| AR-XBH-80 | 80 | 4800-7200 | 1.5" | 8 | 1.0-1.5m/min |
| AR-XBH-100 | 100 | 6000-9000 | 1.5" | 10 | 1.0-1.5m/min |
| AR-XBH-120 | 120 | 7200-10800 | 1.5" | 12 | 1.0-1.5m/min |
| AR-XBH-160 | 160 | 9600-14400 | 1.5" | 16 | 1.0-1.5m/min |
| AR-XBH-200 | 200 | 12000-18000 | 1.5" | 20 | 1.0-1.5m/min |
| AR-XBH-240 | 240 | 14400-21600 | 1.5" | 24 | 1.0-1.5m/min |
| AR-XBH-320 | 320 | 19200-28000 | 1.5" | 32 | 1.0-1.5m/min |
Applications
Where this equipment is typically used
The exact model should be selected after AIER reviews pollutant properties, airflow and operating conditions.
Application
Industrial powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Metalworking dust
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Pharmaceutical powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Workshop dust extraction
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
General manufacturing dust control
Review airflow, pollutant properties and site conditions before final equipment selection.
How to Choose
Selection notes before requesting a quote
- Choose a pleated bag dust collector when installation space is limited or an existing collector needs a compact retrofit.
- Use pleated bags for high temperature and high dust concentration conditions where a cartridge dust collector is not suitable.
- Consider pleated bags to reduce filter bag quantity, running and maintenance costs.
- Compare with a conventional baghouse dust collector when installation space is not limited.
Related Products
View CategoryCompare related AIER equipment
Product Inquiry
What Information Should You Send for a Quote?
For a more accurate recommendation, please include your process, pollutant type, airflow, concentration, temperature, target emission requirement and destination country in the message.
Send Us a Message
FAQ
Frequently Asked Questions
Short answers for product-level selection. For exact model sizing, send your operating data to AIER.
When should I choose a pleated bag dust collector?
Choose it when installation space is limited, when an existing collector needs a retrofit upgrade, or when the project needs more filtration area in a compact housing. It reduces collector volume by more than 40% at the same filtration area compared with a traditional bag filter.
Can a pleated bag dust collector handle high temperature and high dust concentration?
Yes. Pleated bags can be applied to high temperature and high dust concentration occasions which a cartridge dust collector cannot handle. Operating data should still be reviewed before final selection.
What is the difference between pleated bags and traditional filter bags?
A pleated filter bag provides a larger filtration area per bag through its folded structure, so the same duty needs fewer bags or a smaller housing, which reduces running and maintenance costs.
What information is needed for a pleated bag dust collector quote?
Please provide the dust source, dust type, airflow, dust concentration, temperature, humidity, installation space, emission target and installation country. AIER will review the model, filtration area and filter wind speed based on your data.
