High pressure value of the equipment can meet the high pressure conveying conditions;
Industrial Dust Collection
Round Bag Dust Collector - Compact Pulse Jet Filter
A round bag dust collector is a compact pulse jet filter system built around round filter bag arrangements for industrial dust capture.
It is used when the project needs bag filtration in a compact or specific layout while keeping maintenance and dust discharge practical.
Product Description
Compact round bag collector for industrial process dust
round bag dust collector information, applications and selection notes for industrial emission control projects.

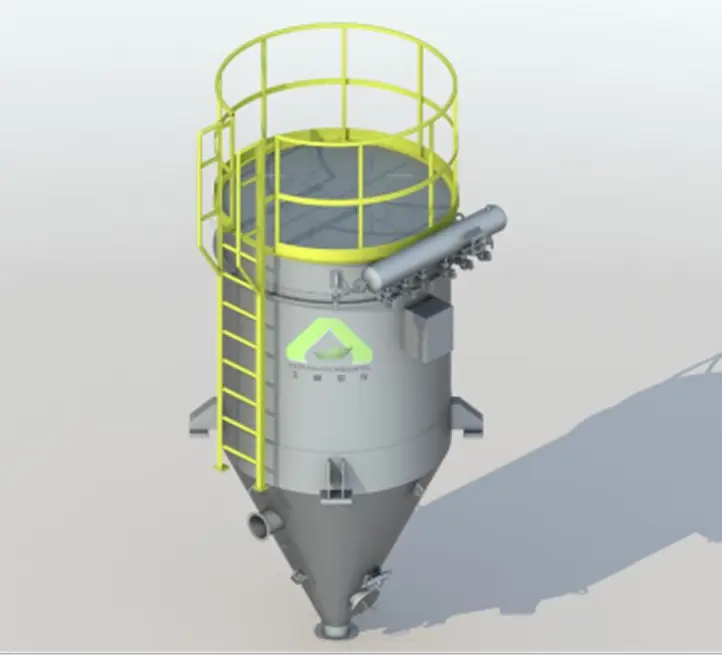

AIER Environmental Round Bag Dust Collector features a cylindrical housing design, engineered for large airflow, heavy-duty dust loads, and continuous industrial operation. Compared with rectangular designs, the round structure provides more uniform stress distribution and higher structural strength, making it ideal for outdoor installations and harsh environments. It is also called a round bag filter or cylindrical dust collector and uses round filter bags as the core filter element.
Equipped with high-performance filter bags and a pulse-jet cleaning system, the dust collector maintains stable filtration efficiency and low pressure drop under high dust concentration and large airflow conditions. The cylindrical design minimizes dust accumulation zones and ensures uniform airflow distribution, improving cleaning efficiency and extending filter bag service life.
This system is widely applied in chemical processing, metallurgy, building materials, cement, mineral processing, lithium material production, and other heavy industries where durability and operational reliability are critical.
Based on dust characteristics and site requirements, AIER Environmental offers customized options including high-temperature resistance, corrosion protection, explosion-proof and antistatic designs to ensure safe, compliant, and long-term operation.
- Send dust source, airflow, dust loading and temperature before equipment selection.
- Review dust properties carefully when the dust is sticky, oily, wet or high-temperature.
- Confirm installation space, hopper discharge and maintenance access before final sizing.
Treatment direction Industrial dust collection
Core process Pulse jet filtration
Review data Dust source, airflow, dust loading and temperature
How It Works
How the round bag collector captures dust
Dusty air is filtered through round bag media, pulse cleaning releases dust cake from the filter surface, and dust is discharged through the hopper or collection device.
Pollution source review Equipment configuration Emission target check
Key Features
Product features and configuration advantages
These points describe the product-level configuration direction. Final design should still be reviewed against site data.
To treat high concentration dust, suitable filtration materials can be selected according to different conveying materials;
The air inlet combined with cyclone structure design, so that it has the advantages of cyclone and bag dust collector, with higher dust removal efficiency;
Different filter materials can be selected according to different materials and working conditions. For example, the filter element can also choose a large air volume filter cartridge, greatly reducing the volume and footprint of the dust collector;
With different parts such as rotary valve, gravity sensor, level meter, vibrator and other fluidization devices and explosion-proof parts and facilities, to achieve automatic control requirements under different working conditions.
Technical Data / Specification
Reference data for round bag dust collector selection
Actual parameters are configured according to airflow, concentration, temperature, installation space and target emission requirement.
| Model | Filtration Area (m²) | Air Flow (m³/h) | Nominal Diameter | Filter Bag Specification (mm) | Filter Bag Quantity |
|---|---|---|---|---|---|
| AR-RD-20 | 20 | 1200 | DN1200 | φ130x2000 | 24 |
| AR-RD-30 | 30 | 1800 | DN1400 | φ150x2000 | 31 |
| AR-RD-40 | 40 | 2400 | DN1600 | φ130x2000 | 51 |
| AR-RD-60 | 60 | 3600 | DN1800 | φ130x2500 | 61 |
| AR-RD-85 | 85 | 5100 | DN2000 | φ130x2500 | 85 |
| AR-RD-110 | 110 | 6600 | DN2200 | φ130x3000 | 88 |
| AR-RD-155 | 155 | 9300 | DN2500 | φ130x3500 | 109 |
Applications
Where this equipment is typically used
The exact model should be selected after AIER reviews pollutant properties, airflow and operating conditions.
Application
Industrial powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Metalworking dust
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Pharmaceutical powder handling
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
Workshop dust extraction
Review airflow, pollutant properties and site conditions before final equipment selection.
Application
General manufacturing dust control
Review airflow, pollutant properties and site conditions before final equipment selection.
How to Choose
Selection notes before requesting a quote
- Choose a round bag dust collector when the project needs a pressure-resistant circular structure for dust collection and material recovery.
- Use it for high pressure conveying conditions and high dust concentration materials.
- Select the filter media according to the conveyed material; a large air volume filter cartridge element can also be used to reduce footprint.
- Add rotary valve, level meter, vibrator or explosion-proof parts when the process needs automatic control.
Related Products
View CategoryCompare related AIER equipment
Product Inquiry
What Information Should You Send for a Quote?
For a more accurate recommendation, please include your process, pollutant type, airflow, concentration, temperature, target emission requirement and destination country in the message.
Send Us a Message
FAQ
Frequently Asked Questions
Short answers for product-level selection. For exact model sizing, send your operating data to AIER.
What is a round bag dust collector used for?
A round bag dust collector is used for dust treatment and material recovery in new energy, building materials, metallurgy, chemical, casting and grain processing industries, especially in conveying and processing systems.
Why does it use a circular structure?
The circular structure is the most pressure-resistant design. It gives the equipment a high pressure rating for high pressure conveying conditions and provides uniform stress distribution for outdoor and harsh environments.
Which filter media can be used in the system?
Filter bags are selected according to the conveyed material and working conditions. A large air volume filter cartridge element can also be chosen to greatly reduce the volume and footprint of the dust collector.
What information is needed for a round bag dust collector quote?
Please provide the dust source, conveyed material, airflow, dust concentration, operating pressure, temperature, humidity, emission target and installation country. AIER will review the model, nominal diameter, filter bag specification and quantity based on your data.
