Ammonia is one of the most common reasons industrial plants ask about alkaline gas scrubbing. It appears in chemical and fertilizer processing, refrigeration vent lines, wastewater stripping and other facilities that handle nitrogen compounds. Even at moderate concentrations it creates strong odor complaints, and it is corrosive to copper and some alloys.
This article explains how an ammonia scrubber works, when water washing is not enough and an acid route is used, where ammonia scrubber systems are applied, and what operating data AIER needs to review a scrubber selection. It is written for plant engineers, environmental managers and project buyers who operate or plan exhaust gas treatment systems. It does not replace process design, safety evaluation or local emission requirements for a specific project.

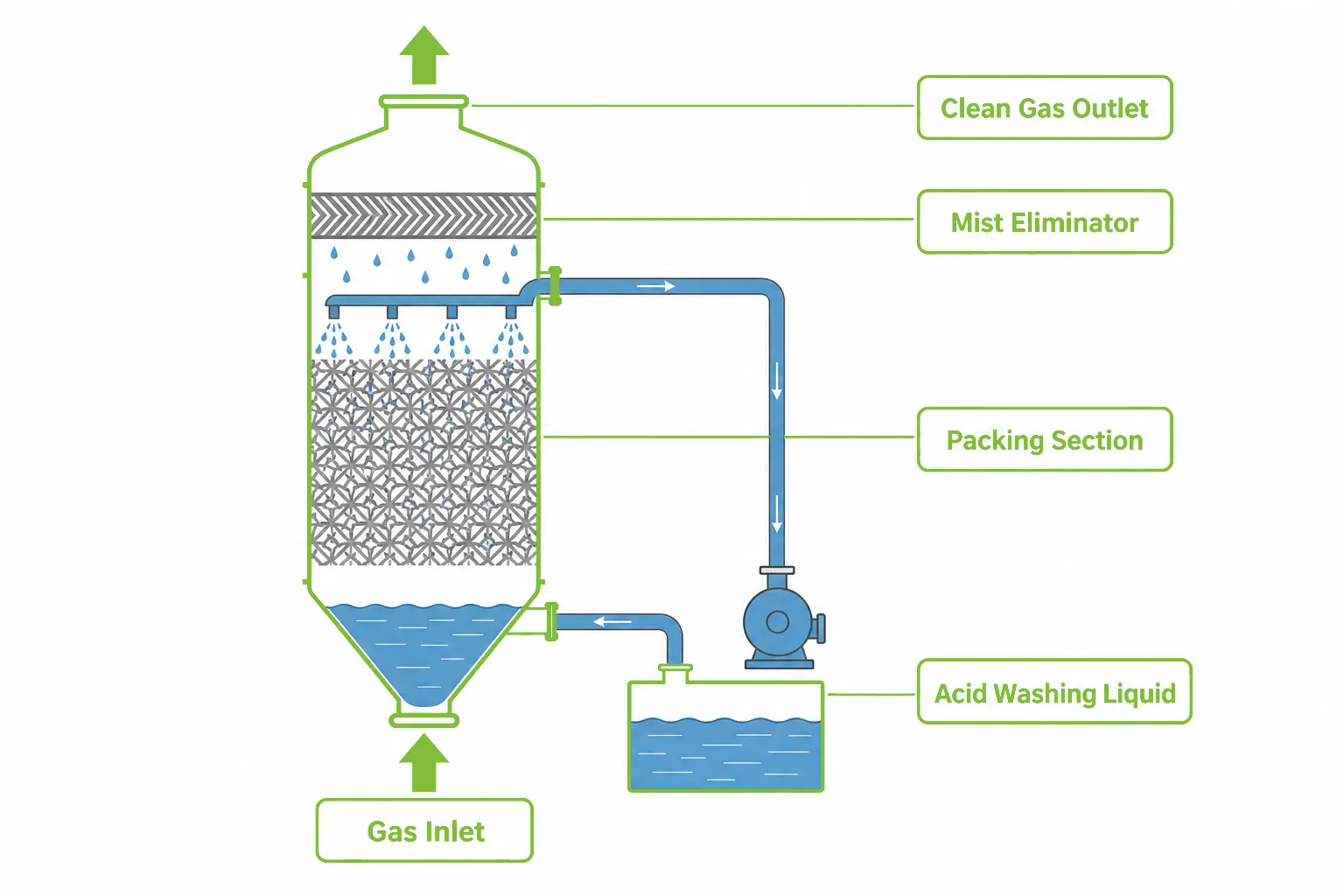

An ammonia scrubber brings the exhaust gas into contact with a washing liquid so ammonia can be absorbed and neutralized before discharge.
What Is an Ammonia Scrubber?
An ammonia scrubber is an exhaust gas treatment device that removes ammonia and related alkaline gases from an air or gas stream through gas-liquid contact, usually in a washing tower where the gas passes through a circulating liquid that absorbs and neutralizes the ammonia.
Most industrial ammonia scrubbers are wet scrubbing towers. The exhaust gas enters the tower, flows through a contact section where it meets the washing liquid, and leaves through a mist eliminator at the top. Because ammonia is a basic gas, the washing liquid is often acidic, which is why an ammonia scrubber is frequently designed as an acid scrubber operating on the acid washing route.
The same tower platform can be adapted to different pollutants by changing the washing liquid and internals. This is why ammonia scrubbing is usually reviewed as one application of an industrial wet scrubber rather than a completely separate equipment type. The full route map — scrubbing, oxidation, adsorption and recovery — is in our air pollution control equipment overview.
Why Ammonia Needs Treatment in Industrial Exhaust
Ammonia is a colorless gas with a sharp, irritating odor. According to OSHA, it is both toxic and corrosive at elevated concentrations, and it occurs in chemical processing, fertilizer production, refrigeration systems and many wastewater treatment steps. For exhaust treatment projects, three practical problems usually drive the decision.
- Odor complaints: ammonia is detected at low levels, so vent lines, storage areas and stripping stages can create neighborhood complaints before any formal limit is reached.
- Corrosion: ammonia and ammonium compounds attack copper, brass and some coated surfaces, increasing maintenance costs on ductwork and instruments.
- Workplace and emission requirements: plants need to control ammonia around work areas and meet local emission and odor requirements, which vary by country and project.
Because these drivers are different, the same ammonia concentration can require different treatment targets in different plants. Gas data and the emission target should be confirmed before any scrubber model is selected.
How a Wet Scrubber Removes Ammonia
In a wet scrubbing tower, ammonia removal happens in two steps that work together. First, the gas is absorbed into the washing liquid at the gas-liquid contact surface. Second, the absorbed ammonia reacts with the washing chemistry so it stays in the liquid instead of escaping back into the gas.
The contact section is usually a packed bed, where packing media creates a large wetted surface between the rising gas and the circulating liquid. Spray sections can also be used depending on the gas condition. The washing liquid is collected at the bottom, circulated back to the top, and refreshed as the chemistry is consumed. A mist eliminator at the outlet reduces droplet carryover before the treated gas is discharged.
Because absorption depends on the washing liquid chemistry, the key design question for an ammonia scrubber system is not only the tower size. It is whether the washing route matches the gas composition, which is where water washing and chemical washing are compared.

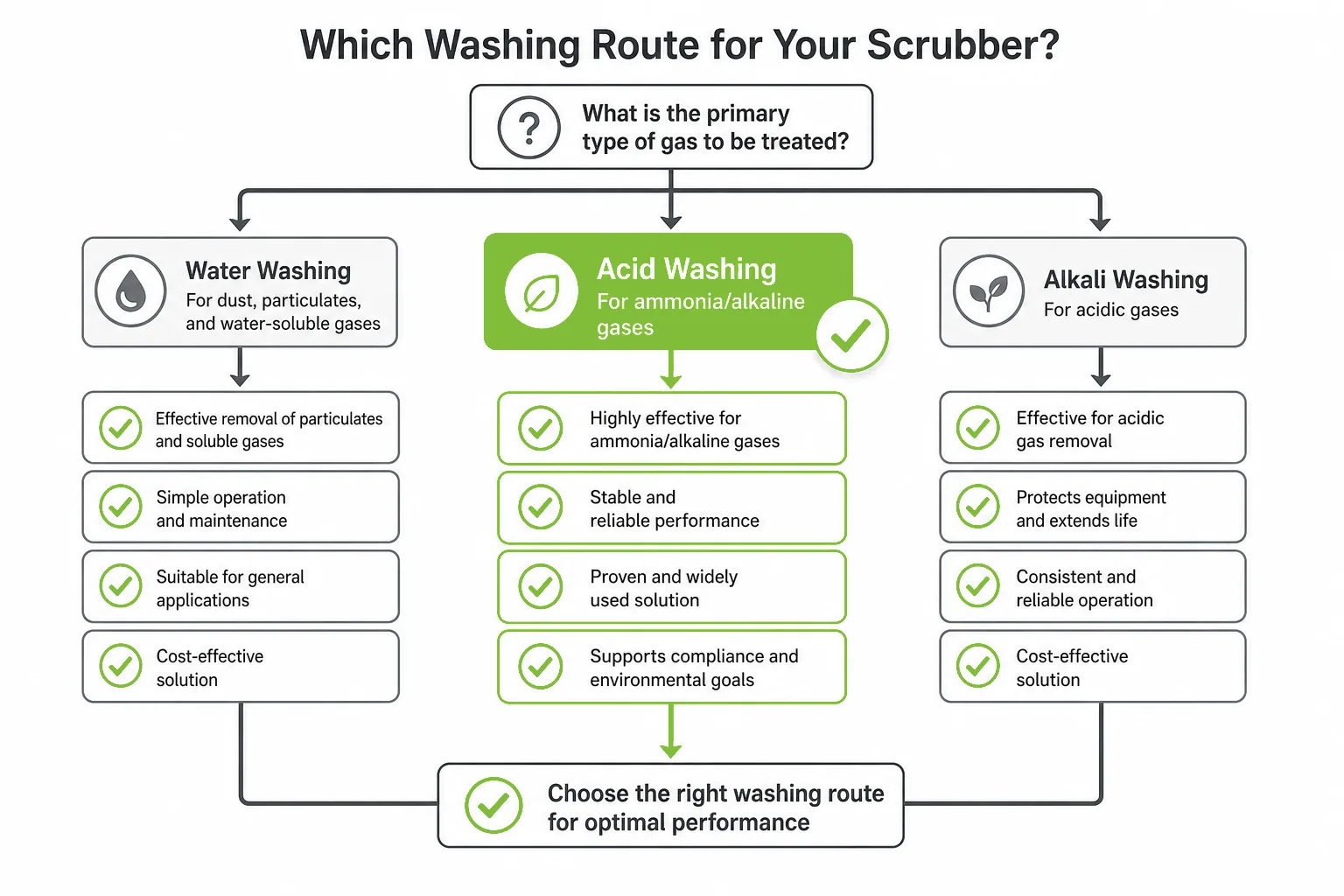

Water Washing, Chemical Washing and the Acid Route
AIER scrubbers are designed around two washing families: water washing and chemical washing. Water washing dissolves water-soluble components, such as ethanol. Chemical washing is divided into acid washing and alkali washing, and the route is selected according to the gas composition and the application.
Washing route selection depends on the gas composition; ammonia and other alkaline gases usually need an acid washing route instead of water alone.
| Washing Route | Typical Target | Relevance to Ammonia |
|---|---|---|
| Water washing | Water-soluble components such as ethanol and some dust | Ammonia is soluble in water, but plain water has limited neutralization capacity for continuous alkaline gas loads |
| Acid washing (acid route) | Alkaline gases, including ammonia and many nitrogen compounds | The main route for ammonia; an acidic washing liquid neutralizes the absorbed gas and keeps it in the liquid |
| Alkali washing (caustic route) | Acid gases, including H2S and many sulfur compounds | Not used for ammonia; it targets the opposite gas family. See the H2S scrubber and caustic route article for acid gas review points |
An acid scrubber is simply a wet scrubber operating on the acid washing route. The acidic washing liquid reacts with the absorbed ammonia, which keeps the driving force for absorption and prevents the gas from being released again. The actual chemical dosing, liquid management and wastewater handling are project-specific and should be confirmed during engineering review, not copied from an article.
Some projects combine stages, for example a water washing stage for dust and soluble components followed by an acid washing stage for the alkaline gas. Multi-stage designs are one reason the gas composition matters more than the tower model number.

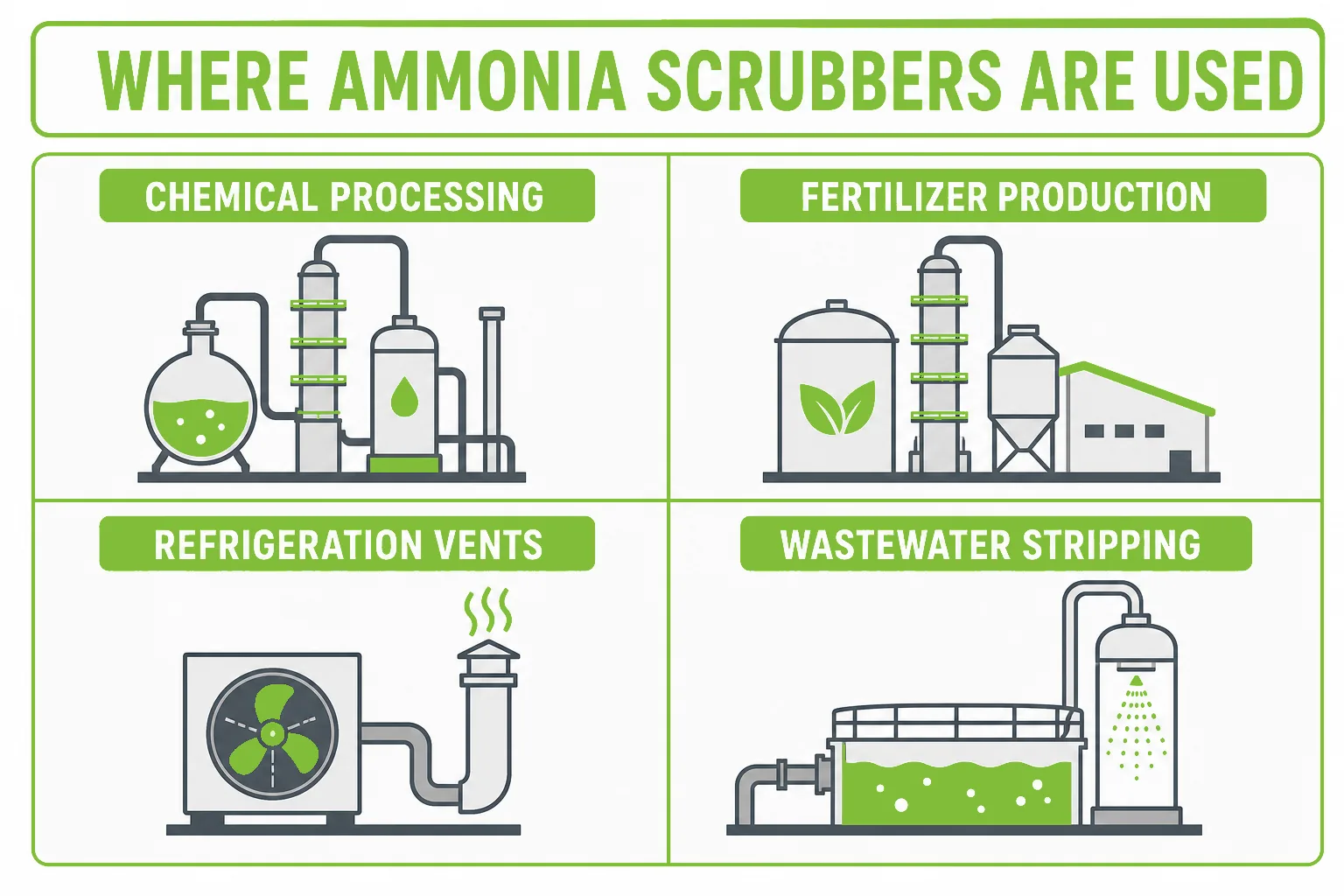

Where Ammonia Scrubbers Are Used
Ammonia scrubbers appear wherever nitrogen compounds are generated, vented or stripped. Whether the unit is called an odor control tower, an ammonia air scrubber or an ammonia scrubber system, the most common industrial applications share one pattern: a continuous exhaust stream with odor or corrosion problems that water washing alone cannot solve reliably.
Typical ammonia scrubber applications include chemical and fertilizer processing, refrigeration vent lines, wastewater stripping and other facilities handling alkaline exhaust.
| Application | Typical Ammonia Source | Common Treatment Concern |
|---|---|---|
| Chemical and fertilizer processing | Reaction vents, storage breathing and transfer lines | Alkaline gas removal and material compatibility of the scrubber |
| Refrigeration and cold storage vent lines | Ammonia refrigeration system vents and maintenance purge points | Odor control and safe vent handling; project scope must match the actual vent duty |
| Wastewater treatment | Stripping columns, digesters and sidestream treatment vents | Odor control around the site and corrosion of equipment |
| Food and flavor processing | Process vents with ammonia-based cleaning or nitrogen compounds | Odor complaints; often combined with other odor control steps |
Industry pages such as chemical industry exhaust treatment and the food, flavor and fragrance industry show how scrubbers are combined with other equipment in each sector. The scrubber itself is one unit inside a larger exhaust treatment route.

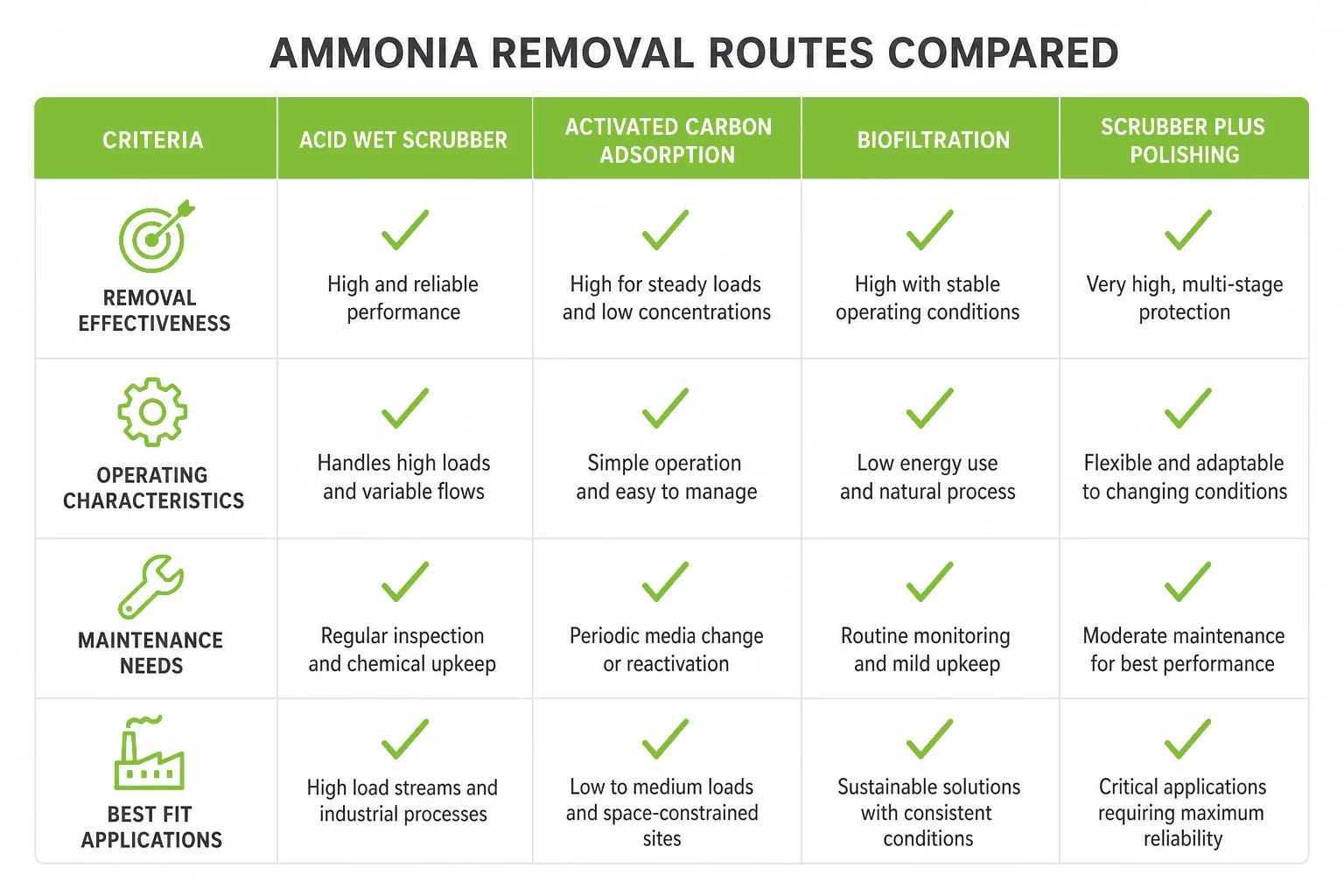

Ammonia Removal Routes Compared
Wet scrubbing is not the only way to address ammonia in exhaust. The right route depends on concentration, airflow, humidity, other pollutants in the stream and how stable the load is. A short comparison helps position where an acid scrubber fits.
Ammonia removal route selection depends on concentration, airflow stability, humidity and other pollutants in the exhaust stream.
| Route | Where It Fits | Review Points |
|---|---|---|
| Acid wet scrubber | Continuous streams, medium to higher or fluctuating ammonia loads, humid gas | Chemical supply, liquid circulation, wastewater handling, outlet humidity |
| Activated carbon adsorption | Low-concentration odor polishing or intermittent sources where wet scrubbing is not preferred | Media selection limits for ammonia, humidity limits, replacement frequency |
| Biofiltration / biotrickling | Stable low to moderate odor loads with space for biological media | Startup time, sensitivity to shock loads, media maintenance |
| Scrubber plus polishing stage | Strict odor targets where one stage is not enough | Stage order, dehumidification between stages, total pressure drop |
For most odor-driven ammonia problems with continuous airflow, the review starts with a wet scrubbing route on the acid washing side and then checks whether a polishing stage is needed. For low, stable and dry streams, adsorption or biofiltration alone may be simpler. The comparison should be made with real gas data, not assumptions.

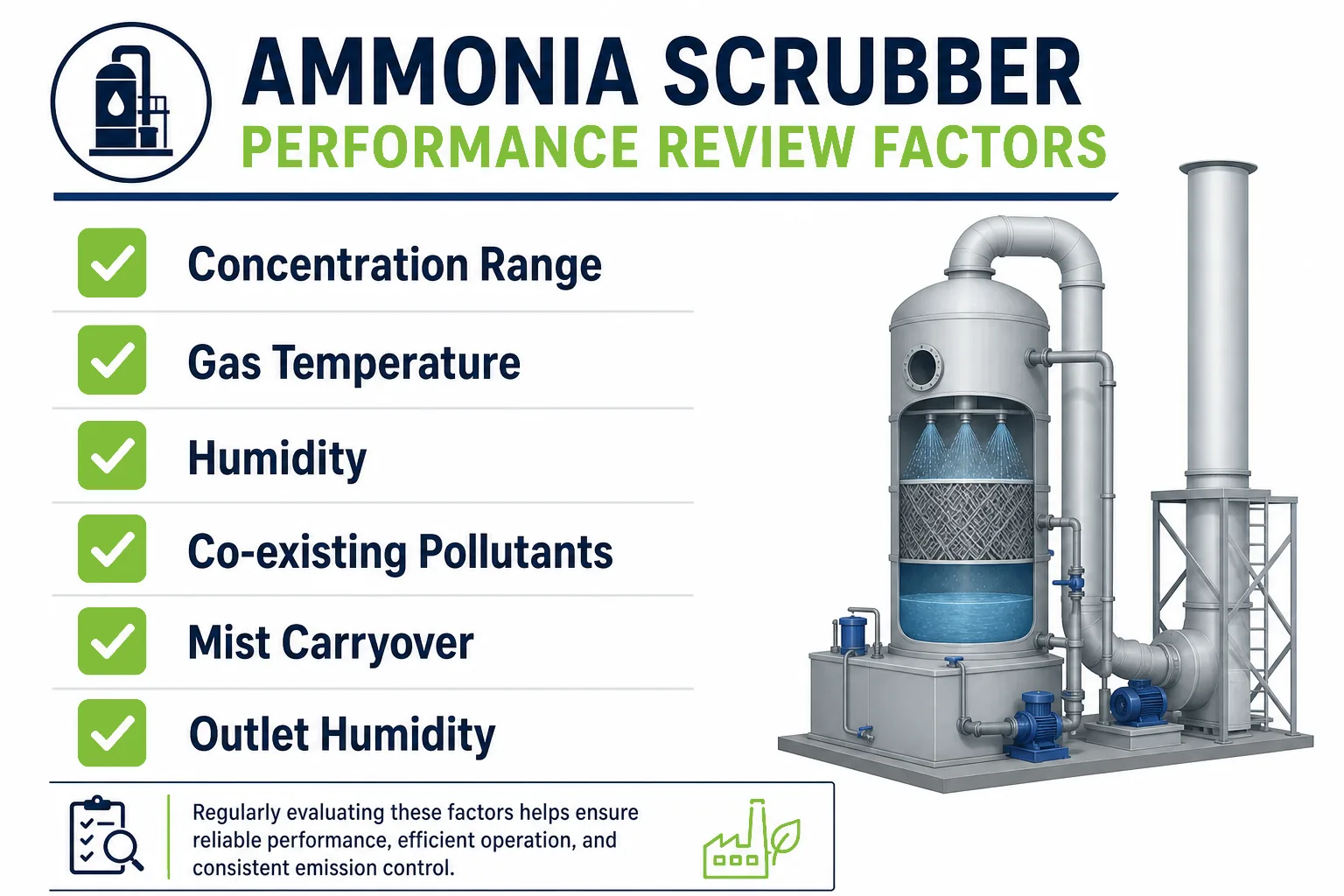

What Affects Ammonia Scrubber Performance
Two ammonia scrubbers with the same nominal airflow can perform very differently. When AIER reviews an ammonia application, these are the factors that usually decide whether the scrubber will work as expected.
Ammonia scrubber review should cover concentration range, temperature, humidity, co-existing pollutants, mist carryover and downstream humidity handling.
- Concentration range, not one number: ammonia loads often swing with production, batch cycles or seasonal operation; the washing route and liquid management must handle the peak, not only the average.
- Gas temperature and humidity: hot or saturated gas changes absorption behavior and material selection for the tower and internals.
- Co-existing pollutants: dust, oil mist, acid gases or VOCs can foul packing, consume washing chemistry or require a pre-treatment stage.
- Mist carryover: the mist eliminator condition affects both emission quality and downstream equipment.
- Outlet humidity: after wet scrubbing, the tail gas relative humidity can reach 100%, so a downstream dehumidifier is recommended when the following process or emission requirement needs drier gas.
- Liquid and wastewater management: spent washing liquid must go somewhere; the plant’s wastewater route should be confirmed at the selection stage.
None of these factors can be judged from a scrubber model list alone. They come from the plant’s operating data, which is why the data package matters more than the catalog page.

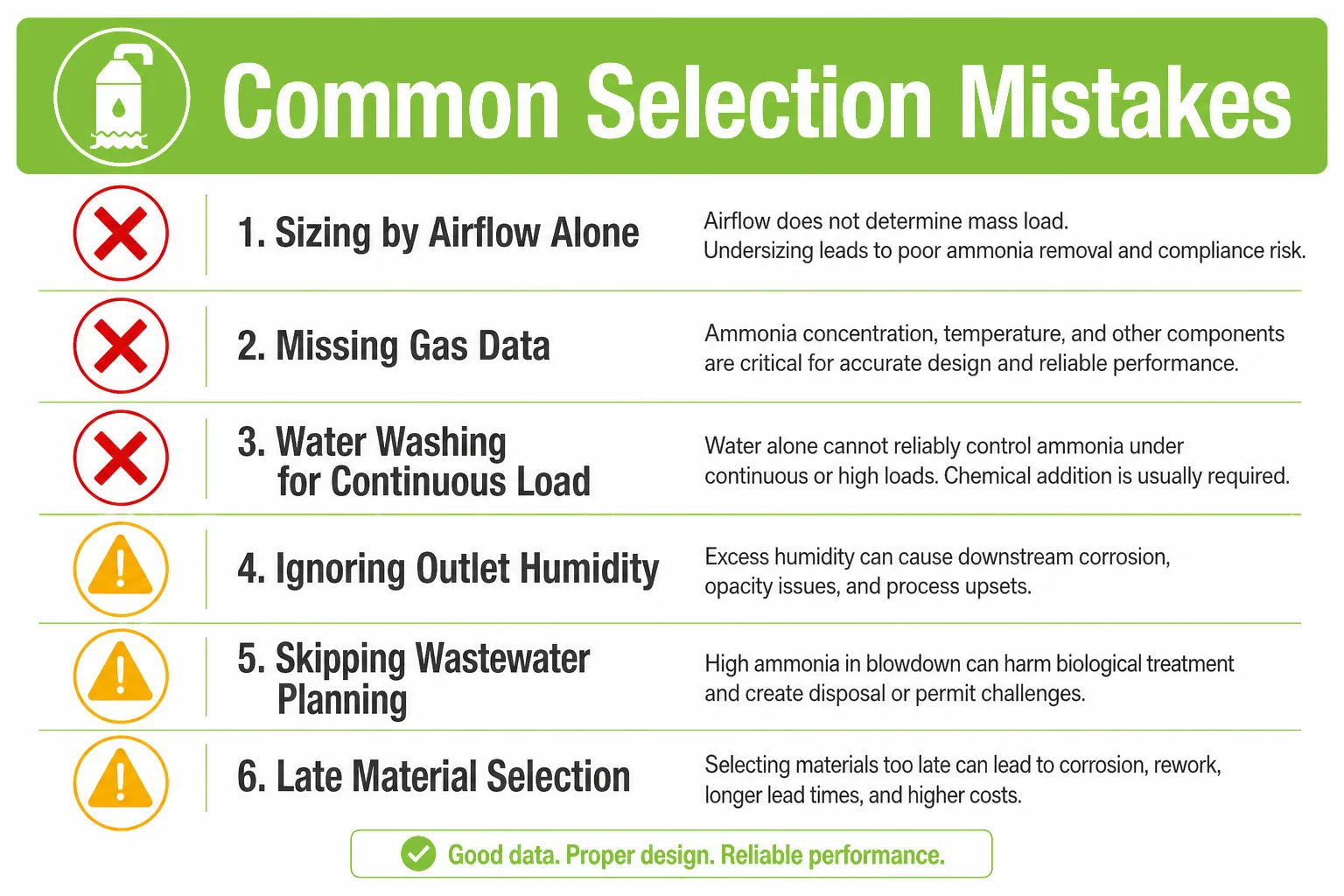

Common Mistakes When Selecting an Ammonia Scrubber
Most ammonia scrubber problems reported after startup trace back to selection-stage gaps rather than equipment failure. These are the patterns AIER sees most often.
Common selection mistakes include sizing by airflow alone, ignoring outlet humidity and leaving washing liquid handling unplanned.
- Sizing by airflow alone: two streams with the same airflow but different ammonia concentrations need different washing designs.
- No lab or field gas data: odor description is not gas composition; a selection without concentration data is a guess.
- Using water washing for a continuous alkaline load: water may handle a short vent pulse, but continuous ammonia duty usually needs an acid washing route review.
- Ignoring the outlet humidity: saturated tail gas surprises downstream equipment and can create visible plume concerns.
- Skipping wastewater planning: the washing liquid becomes a liquid stream that the plant must be able to handle.
- Choosing the material last: ammonia service is corrosive to some metals; tower and internals material should match the gas and washing chemistry from the start.
- Treating the scrubber as the whole system: fans, ducts, pre-treatment and polishing stages decide the final result together with the tower.

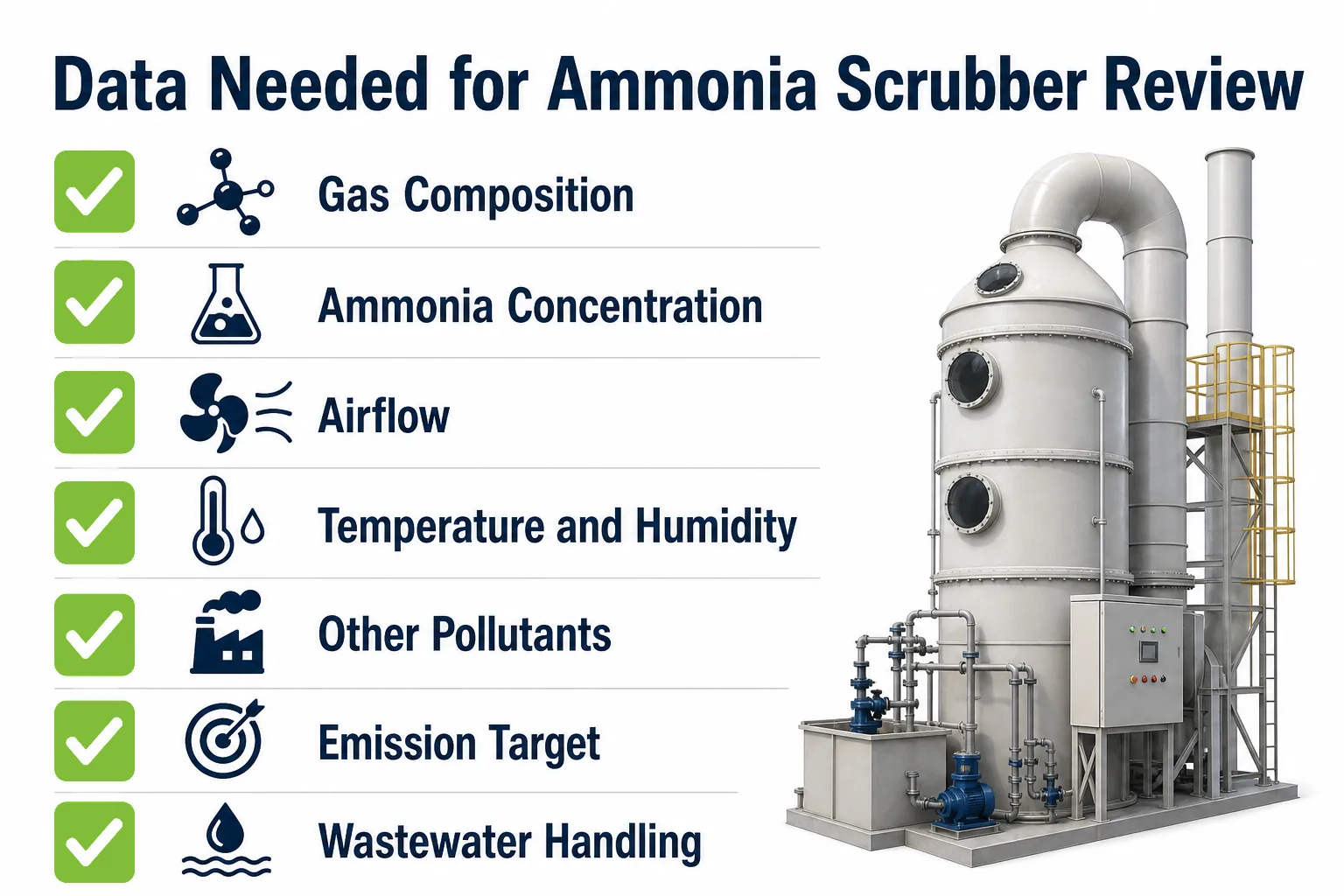

Information AIER Needs for an Ammonia Scrubber Review
An ammonia scrubber review moves much faster when the inquiry includes operating data instead of only a tower size request. This is the information AIER uses to judge the washing route, tower design and material selection.
AIER reviews gas composition, ammonia concentration, airflow, temperature, humidity and the emission target before recommending a scrubber route.
| Data to Prepare | Why It Matters |
|---|---|
| Gas composition and ammonia concentration range | Decides the washing route and chemical consumption estimate |
| Airflow and how stable it is | Decides tower size and turndown behavior |
| Gas temperature and humidity | Affects absorption behavior and material selection |
| Other pollutants in the stream | Shows whether pre-treatment or a multi-stage design is needed |
| Emission or odor target | Defines what the treated gas must achieve and whether polishing is needed |
| Site conditions and installation country | Affects layout, materials, utilities and project requirements |
| Wastewater handling capability | Confirms where the spent washing liquid can go |
If your plant has an ammonia odor or alkaline gas problem, contact AIER with your gas composition, concentration range, airflow, temperature, humidity and emission target. AIER will review whether a water washing stage, an acid route, adsorption polishing or a combined design fits your exhaust condition.
FAQ
What is an ammonia scrubber and how does it work?
An ammonia scrubber is a gas washing tower that removes ammonia from exhaust air through gas-liquid contact. The gas passes through a contact section where a circulating washing liquid absorbs the ammonia, and an acid washing route neutralizes the absorbed gas so it stays in the liquid.
What is an acid scrubber?
An acid scrubber is a wet scrubber that uses an acidic washing liquid to neutralize alkaline gases such as ammonia. It is the most common washing route for continuous ammonia duty because plain water has limited neutralization capacity for alkaline gas loads.
Where are ammonia scrubbers used?
Ammonia scrubbers are used in chemical and fertilizer processing, refrigeration vent lines, wastewater stripping and other facilities where ammonia or related nitrogen compounds create odor, corrosion or emission problems.
Can water washing alone remove ammonia from exhaust?
Water washing can absorb some ammonia, especially in short vent pulses or when ammonia is the only soluble component. Continuous or higher alkaline gas loads usually need an acid washing route review because neutralization capacity and liquid management become the limiting factors.
Does the outlet gas need a dehumidifier after a wet scrubber?
The tail gas relative humidity after a wet scrubber can reach 100%, so a downstream dehumidifier is recommended when the following process or the emission requirement needs drier gas.
What information is needed for an ammonia scrubber quote?
Provide gas composition, ammonia concentration range, airflow, temperature, humidity, other pollutants, the emission or odor target and the installation country. AIER reviews the washing route, tower material and system design based on the exhaust gas condition.
